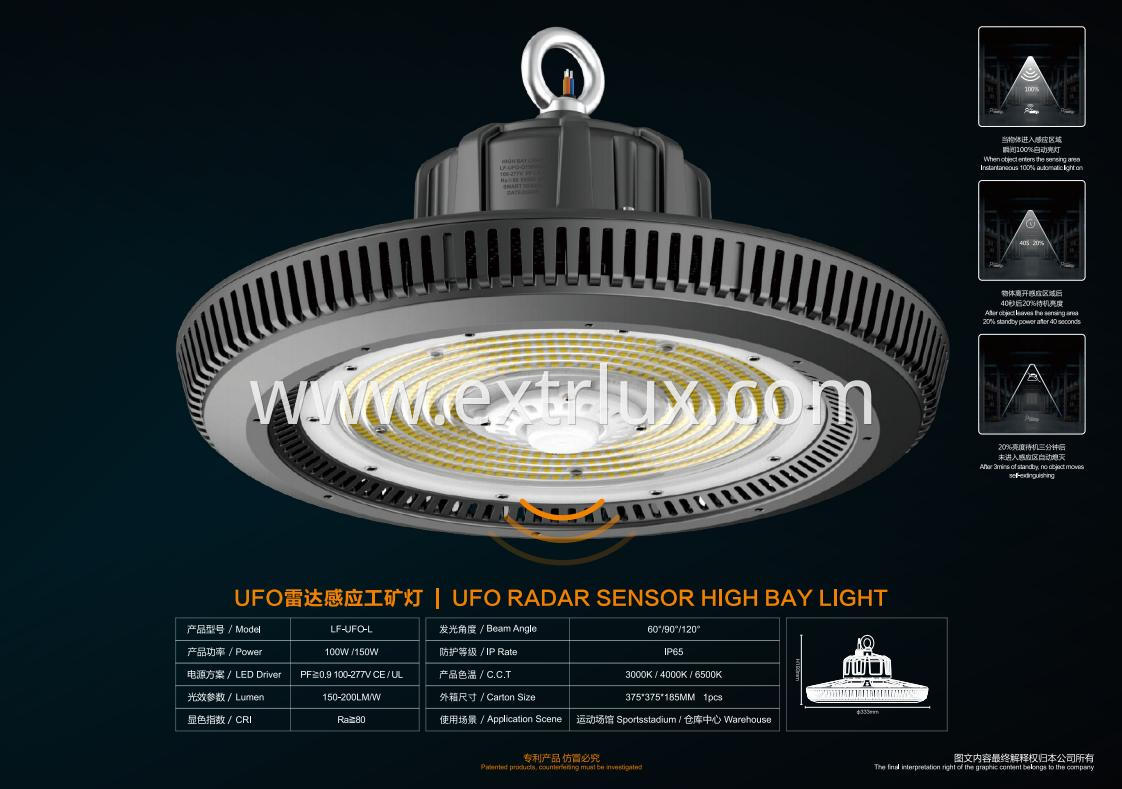

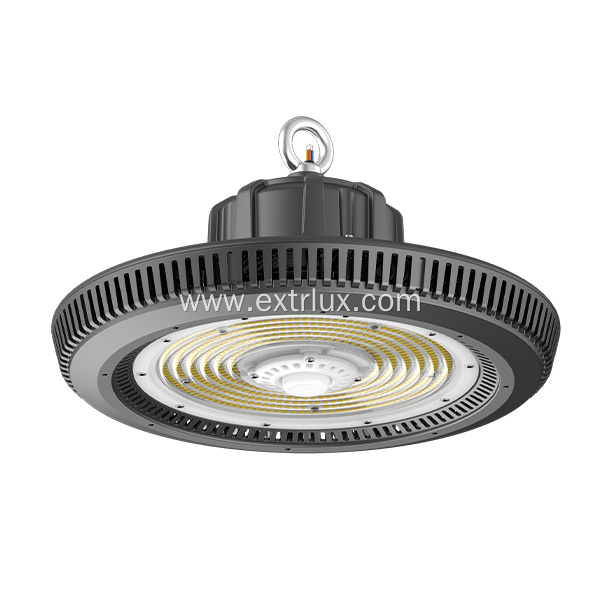

This UFO Radar Sensor High Bay Light is a UFO High Bay Light with a built-in radar sensor module.
Power Options & Wide Voltage: 100W and 150W power options are available, with a 100V-277V wide voltage design to meet the lighting needs of different places.
Beam Angle Options: 60°/90° narrow illumination angle, and 120° wide illumination angle, three angles can be selected, bright and uniform light, reduce the distribution of lighting blind spots, and light up a wider area.
High CRI: 80RA, excellent color reproduction, more restores the color of the light-up object.
IP65: with good waterproof and dustproof performance, safe and reliable.
Unique Heat Dissipation System: Adopting the air convection method, several uniformly arranged and aerodynamic air inlet holes are set at the bottom of the luminaire, while several aesthetically pleasing air outlet holes are designed at the top of the luminaire as well. Combined with a high thermal conductivity aluminum PCB and a high purity finned radiator, the heat dissipation effect can be seen at a glance.
Radar Sensor function: 100% light up when the sensor is activated. After 40S hold time get to 20% standby power working when objects left the sensing zone. After 3 minutes of standby power working, no more than 3 minutes of standby power working. minutes of standby power working, no objects here and get into lights off. Less than 100LUX, the light and sensor start working. Switch 3 times consecutively Switch 3 times consecutively to turn on/off the radar function.
1. When the module is connected to the lamp, the light stops blinking slowly, indicating that the connection is successful.
2. The maximum sensing distance is 8±2 meters, the best sensing radius of the IR sensor is 4 meters, and the best sensing radius of the radar sensor is 4 -8 meters.
3. Default working mode: The sensor starts working when less than 100LUX, and 100% lights up when the sensor is activated. After 40S hold time get to 20% standby power working when objects leave the sensing zone. Then after 3 minutes of standby power working, no objects here and get into lights off. Switch 3 times consecutively to turn on/off the sensor function (A quick flash of light indicates that the setting is successful).
4.Remote control function(purchase remote control separately) : Power switch; Sensor function switch; Light dimmer; Standby hold time 30s /90s /5 mins /10 mins optional; Standby power 0%/20%/40%/60% optional. By default, the lights will be turned off after 3 minutes beyond the preset standby hold time. Photocell sensor rate 20 lux / 50 lux / 100 lux / 300 lux optional; Sensing distance 25%/50%/75%/100% optional. (A quick flash of light for each operation means that the setting is successful)
Optional Accessories: Supports Screw converter / Mounting bracket and Reflector. Additional accessories can be purchased according to specific needs to adjust the lighting effect and improve the convenience and adaptability of installation.
5 Years Warranty: we also provide up to 5 years of warranty service, further reducing the user's after-sales costs, so that the user can rest assured.
This UFO Radar Sensor High Bay Light is suitable for a variety of places where radar sensing is required, especially in warehouse centers and sports stadiums. The UFO Radar Sensor High Bay Light is the ideal solution for industrial lighting where radar sensing is required.
